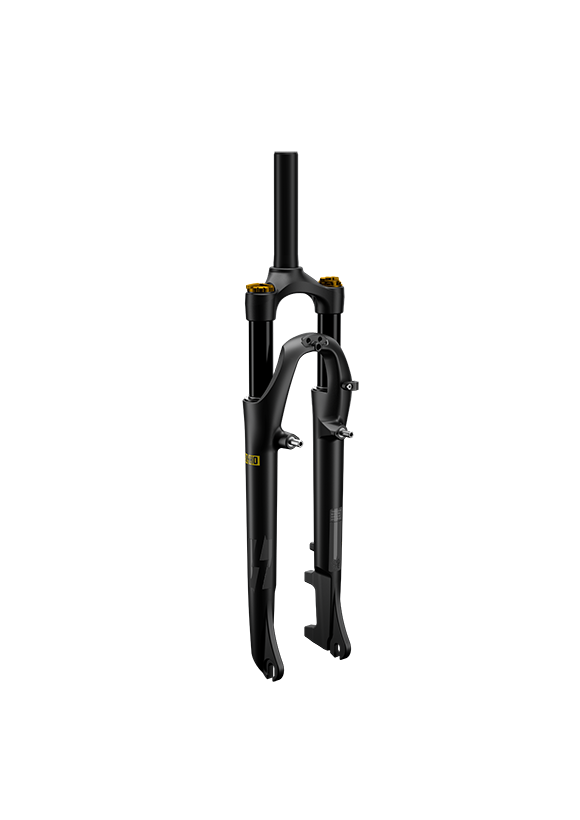

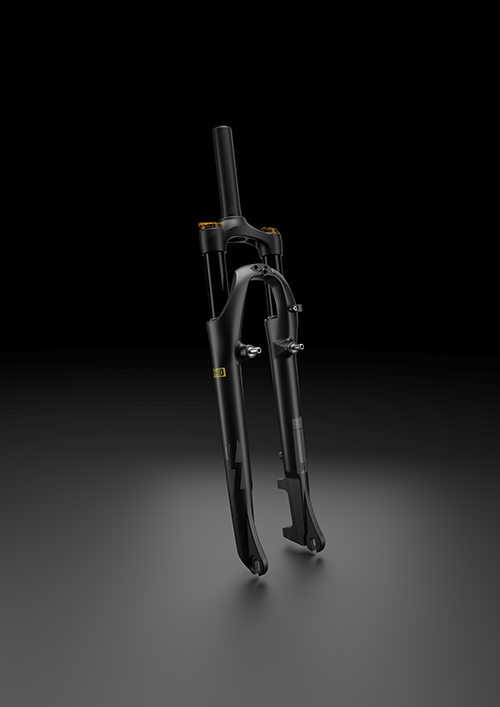

RAY-630 bicycle fork for

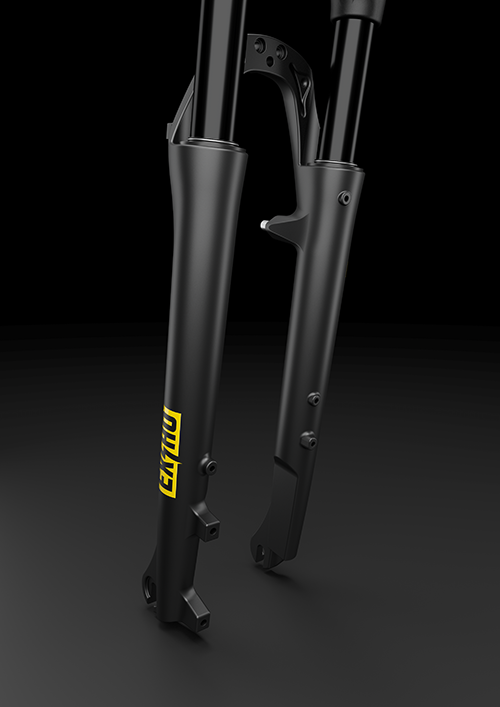

leisure sports city car, aluminum alloy lower leg + forged aluminum crown,
28.6mm high carbon steel stanchion, spring fork, center distance 107mm, can be matched with 700C tires, Suitable for

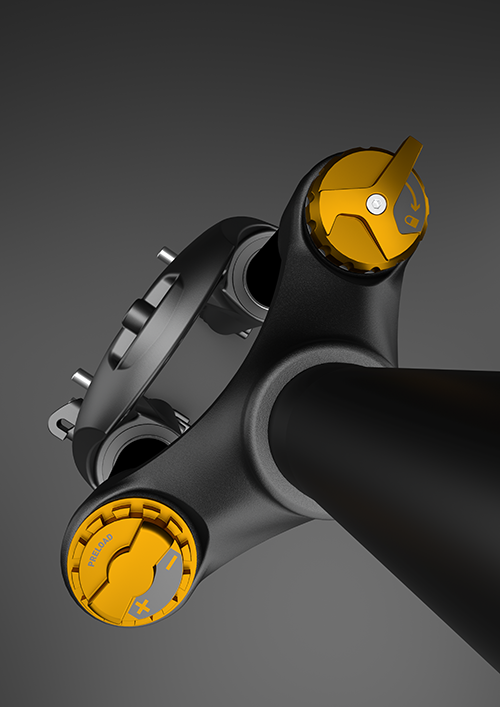

urban roads, with optional preload adjust and mechanical lock-out.
| MODEL: | P | ML-P |
|---|---|---|
| STEERER | SteelØ25.4*28.6 | |
| CROWN PITCH | P107mm | |
| CROWN | Aluminum | |
| STANCHION | Steel-Ø28.6mm CP/ED | |
| CASTING | Aluminium open dropout 100*Ø9.8mm | |
| SPRING | Coil w/P | |
| WHEEL SIZE | 700C | |
| TRAVEL | 50/80mm | |
| BRAKE TYPE | Disc & V-brake | |
- P: Preload Adjuster
- ML: Mechanical Lock-out
